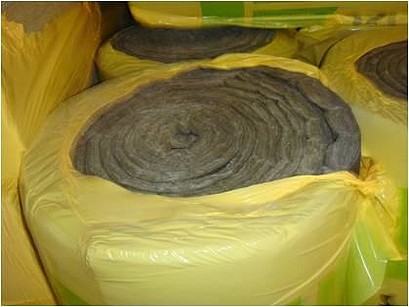

Packing method
Certificates and approvals
Specification sheet
Instruction

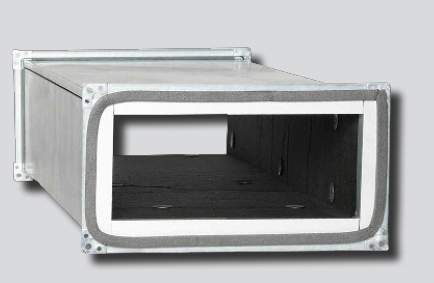

The mat is intended as an internal thermal and acoustic insulation in ventilation, air-conditioning and heating ducts.
- Characteristic
- high thermal insulation quality,
- very good acoustic properties,
- incombustibility,
- vibration resistance,
- corrosion resistance,
- mechanical cleaning ready
- thickness 25 mm,
- width 1,2 m,
- lenght 20 m,
- fire classification A2-s1, d0,
- operating temperature -30 ÷ 120 °C,
- air flow speed up to 20 m/s,
- thermal conduction factor λ=0,032 [W/mK] (w temperaturze 10°C),
- thermal resistance R=0,78 [W/m2K] (at 10°C).
Technical data
| Product | Lenght |
Width |
m2/roll | m2/pallet | m2/truck |
| Intraver Neto 25 mm | 20,00 m | 1,20 m | 24,00 |
288,00 |
5,184 |
| Intraver Neto 40 mm | 10,00 m | 1,20 m | 12,00 |
144,00 | 2,592 |
|
|
AENOR certificate
|
Certificate of constancy of performance
|
|
The declaration of performance
|
|
AENOR ISO 9001
|
|
AENOR ISO 14001
|
IQNET – ISO 9001
|
IQNET – ISO 14001
|
|
EUCEB
|
Declaration of material reuse
|
Declaration of consistency and place of production
|
|
Declaration of recycled material content
|
Characteristic sheet
|
Intraver Neto
Instruction of Intraver NETO mat assembly
